Smart Factory and Unmanned Factory Efficiency Solutions

Stocker Total Solution

Wafer Stocker

Stocker Total Solution

Technical application


Stocker Total Solution

wafer stocker
  • Can be docked with the MES to identify the wafer lot and the corresponding process.
  • Dynamic transfer, storage, and scheduling software
    • Stocker and AGV/AMR Integrated Scheduling
    • Automatic Transfer between Stocker and eRack
    • Automatic transfer between Stocker and each device load port

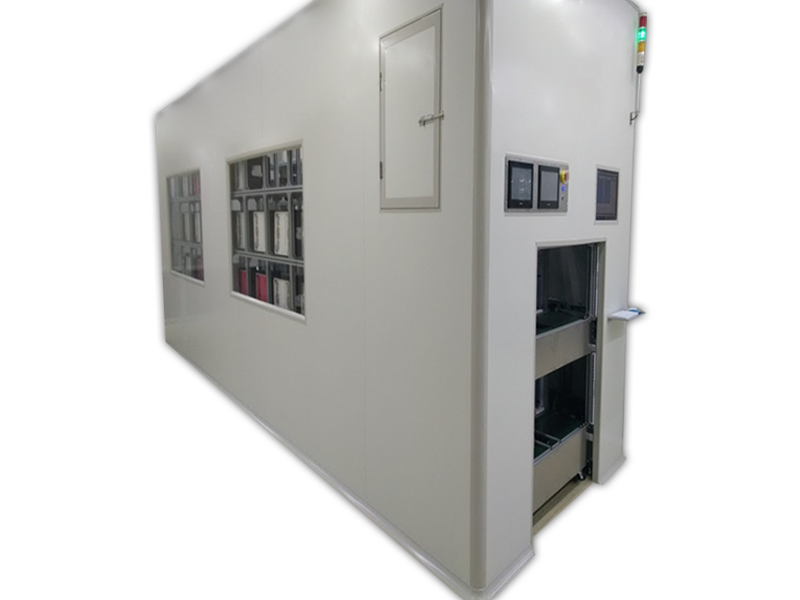

CST STOCKER
10 on one floor 12’’/8’’ CST ( <20kg)
Height 290cm can be placed 7 layers in total 70 lots
SECS/GEM E84 Support

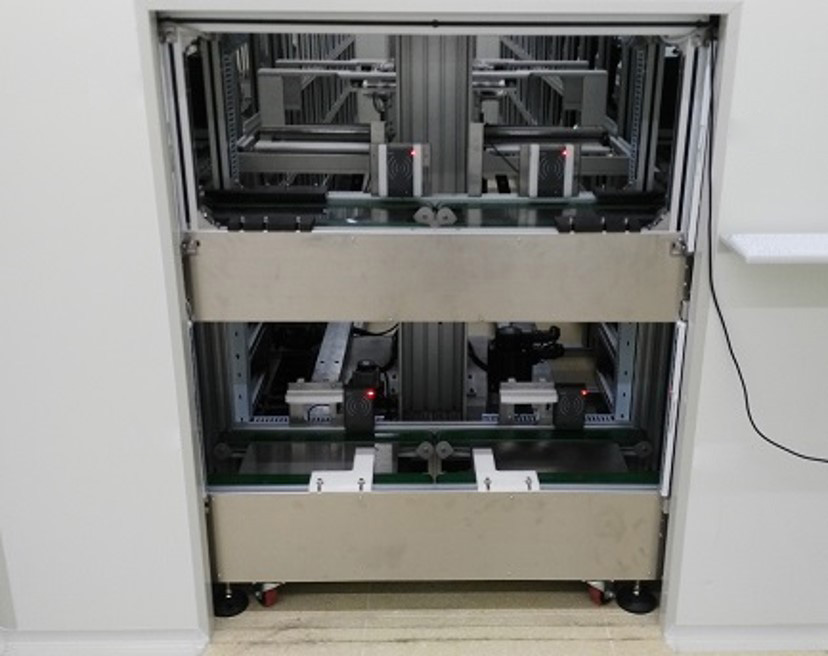

Load Port Input/Output each one (with UHF RFID/Present Sensor)
Arm grip / Mushroom head clip
About 10~15sec Complete a pick and place

Design plan


PLan

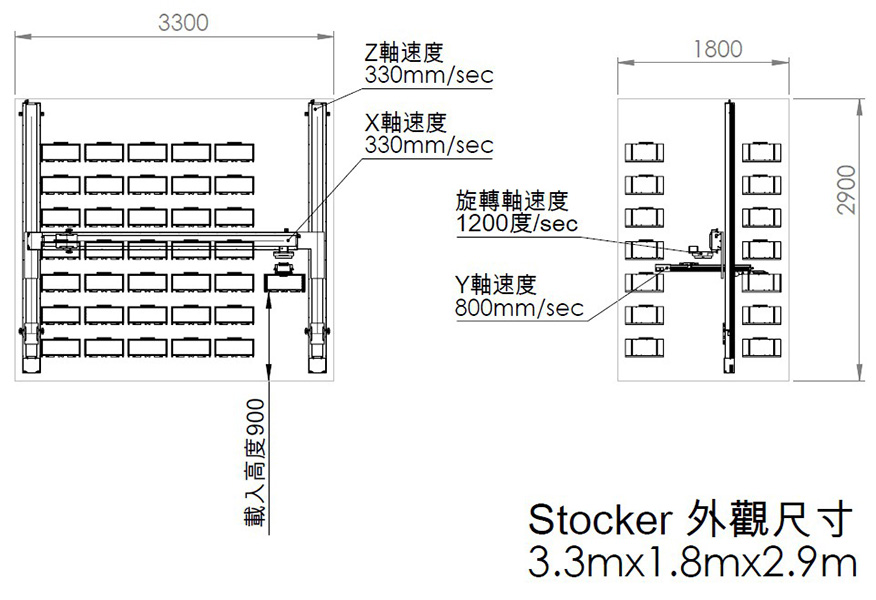

wafer stocker PLAN
PLAN

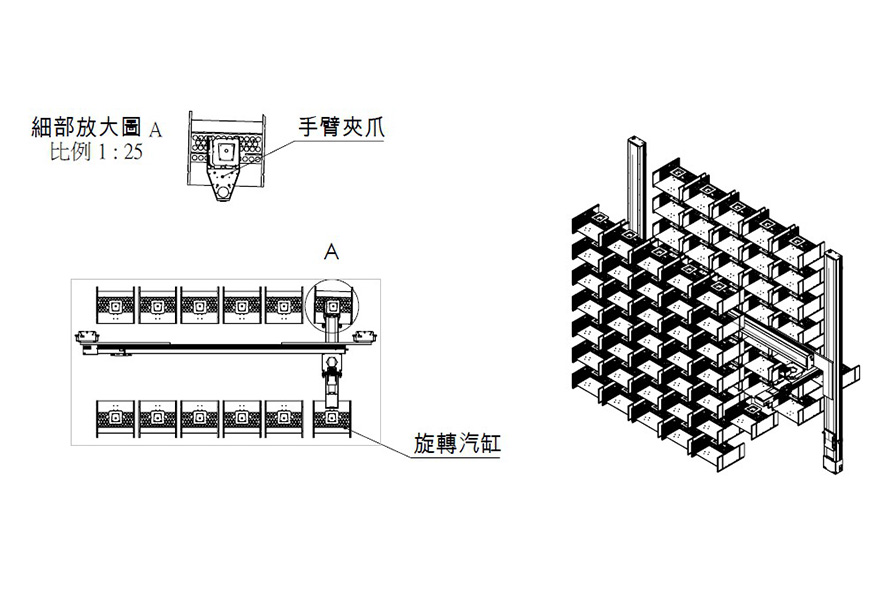

wafer stocker SKELETON
SKELETON

wafer stocker Object
Object

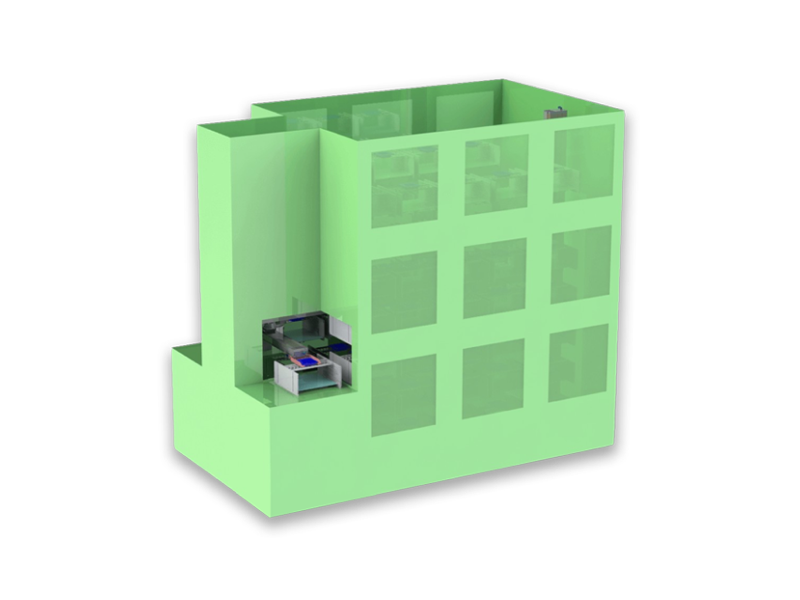

wafer stocker model
Model
