Smart Factory and Unmanned Factory Efficiency Solutions

Radio Frequency Identification Stocker

RFID eRack

RFID eRack

Technical application


  • Effectively monitor the position of the wafer cassette to avoid loss of goods
  • Instant display of operations to operators, replacing paper work orders, reducing erroneous operations
  • Timely alert operator, such as waiting timeout, can improve production efficiency
  • Control production progress
  • Establish production history

eRacks


  • 12-16 Lots
  • Various shelf size formats can be customized
  • High -precision version can support robots

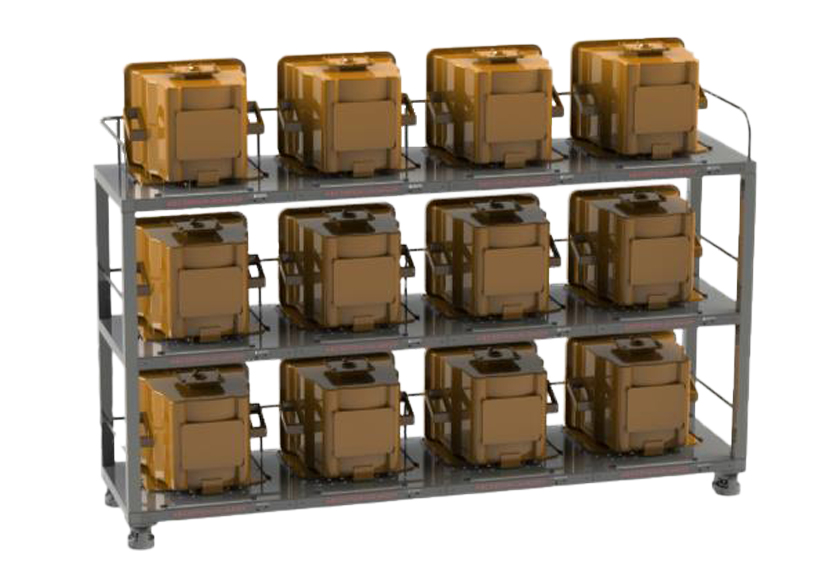

12 Foup
Model
12 Foup
Design

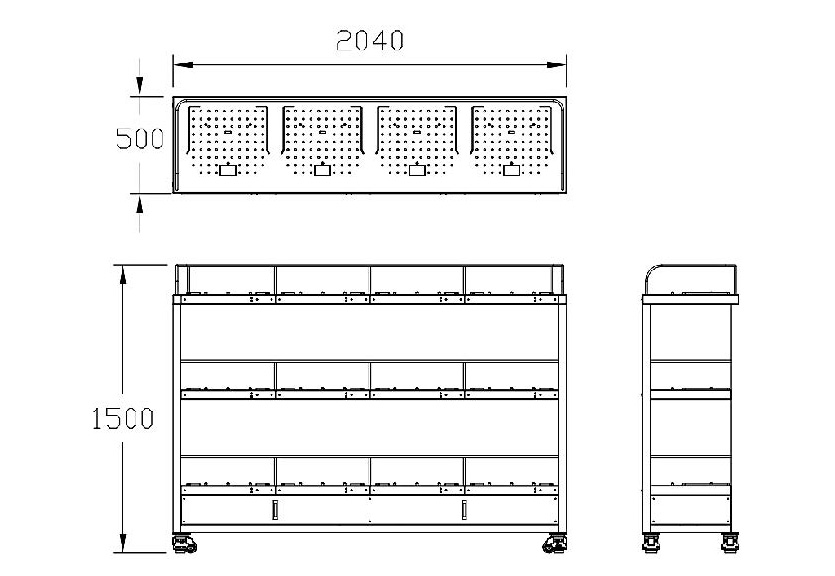

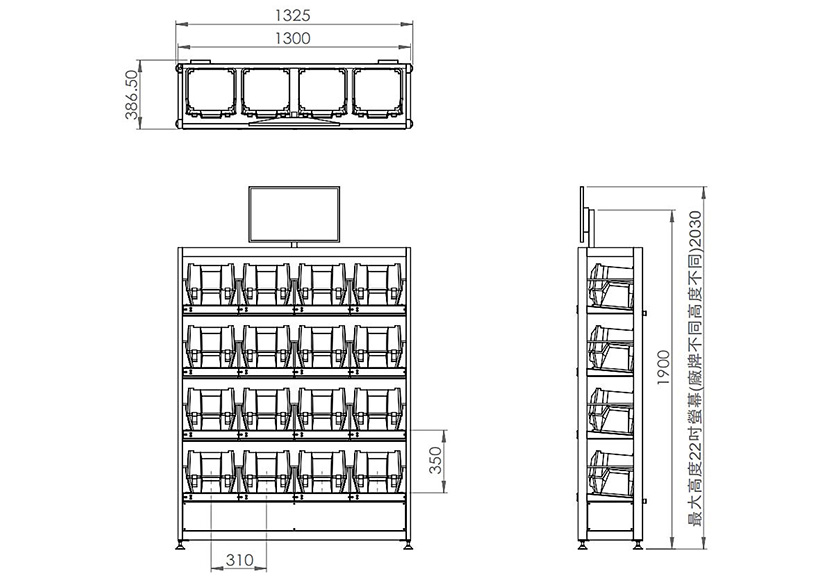

12" FOUP eRacks

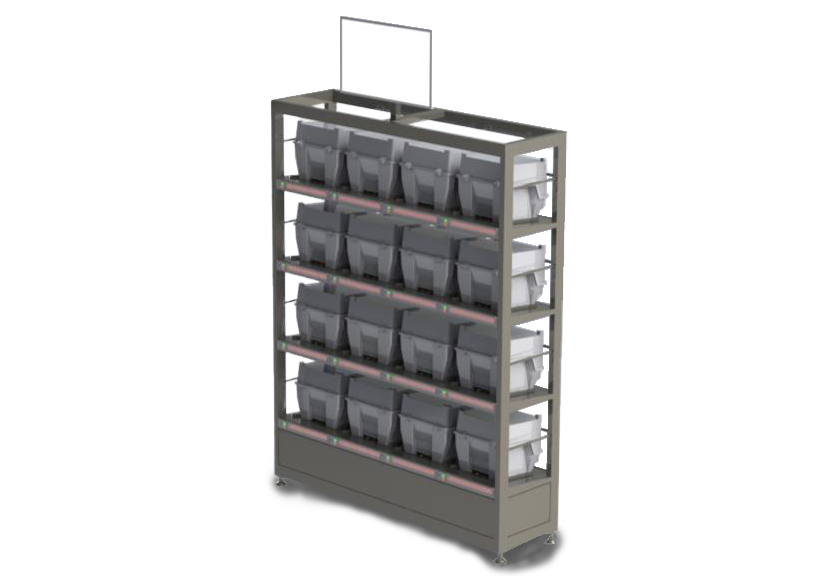

8 CST
Model
8 CST
Design

8" CST eRacks

eRack
Management

eRack management collects all eRack status information, exchanges information on behalf of all eRacks and MES. Provides admin search queries, work order inquiries, statistical analysis, etc.

The eRack shelf can read the rfid tag on the foup by rfid antenna, transfer the carrierID data to the background for unified management, and then receive the foup information from the background to the operator.

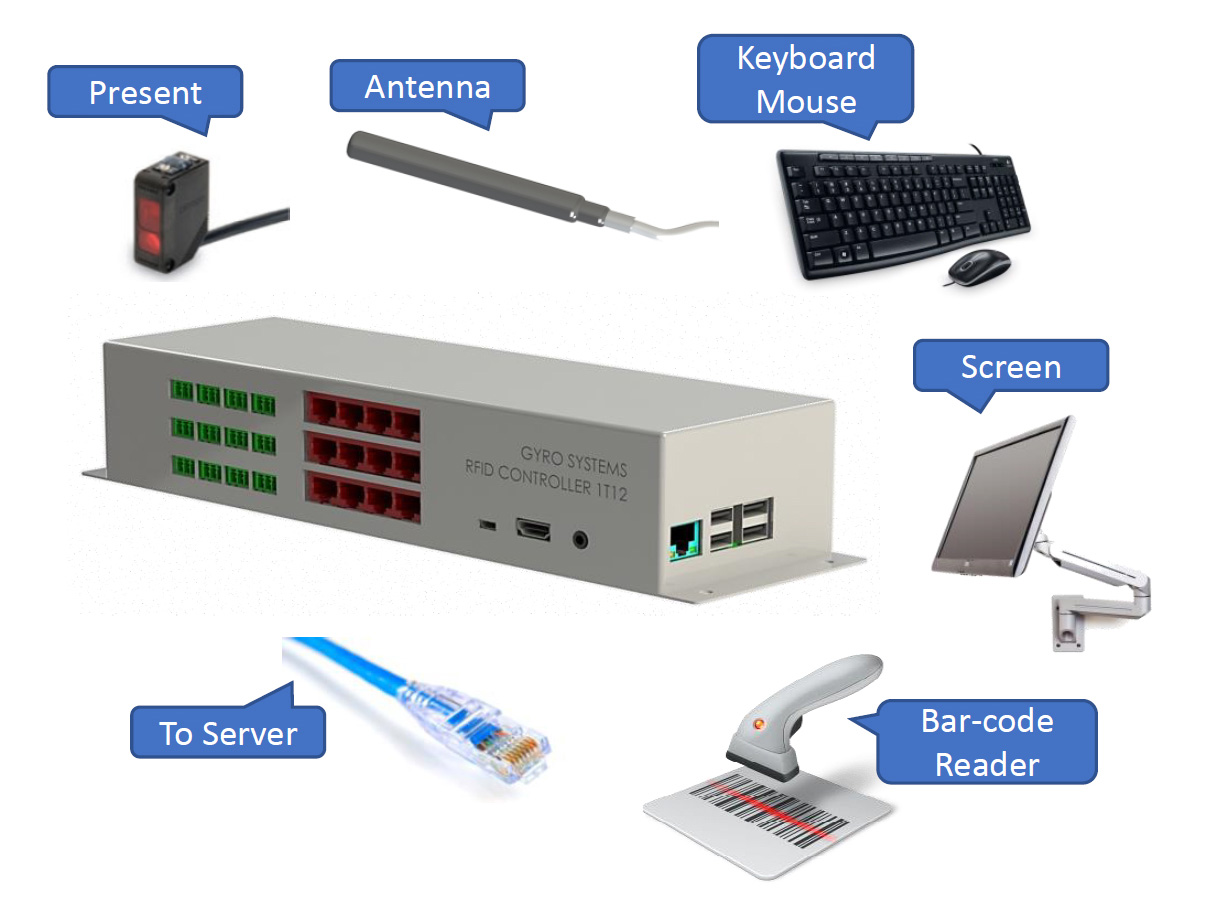

Multi-Antenna RFID Controller

Multi-Antenna RFID Controller

  • One for each eRack RFID Controller,manageable at most 16 Lots
  • Each storage position can be configured with multiple PS / PL
  • Built-in embedded host,Configurable screen / Keyboard / Mouse / Barcode Reader
  • Native support Ethernet ( WIFI communication optional )
  • Special order Antenna read distance can be specified,Super directivity,Anti-interference

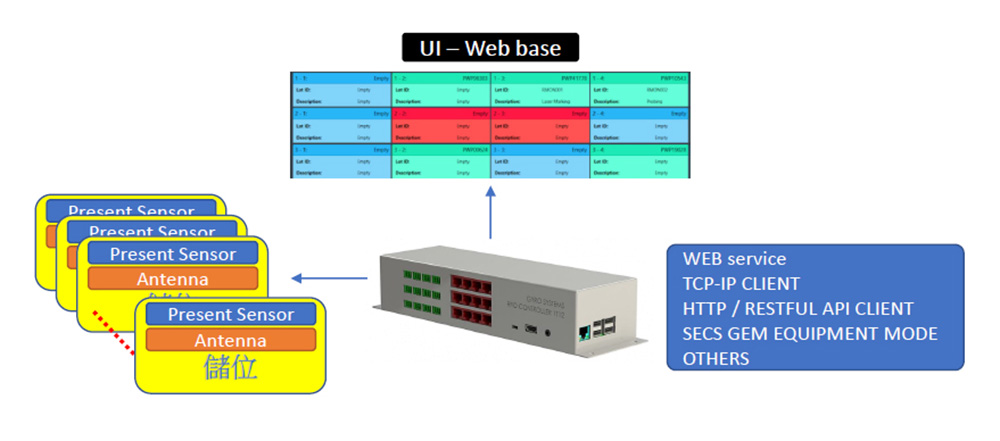

Multi-Antenna RFID Controller built-in software

Multi-Antenna RFID Controller built-in software

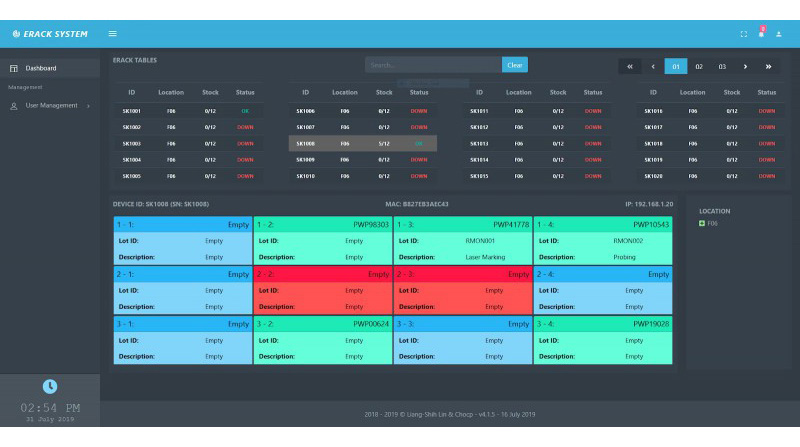

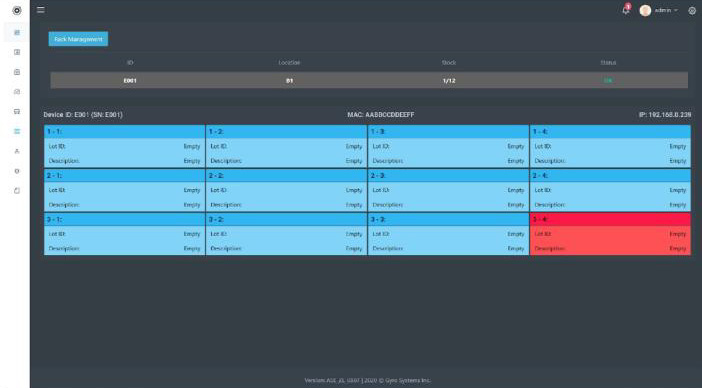

  • Web Base UI (Remote connection display) - Storage status display,Upper level delivery information display
  • TCP-IP,HTTP,RESTFUL API (CLIENT MODE) communication [JSON,XML FORMAT]
  • Support SECS / GEM EQUIPMENT MODE communication *optional
  • Support Present Sensor trigger read,Software-triggered polling read

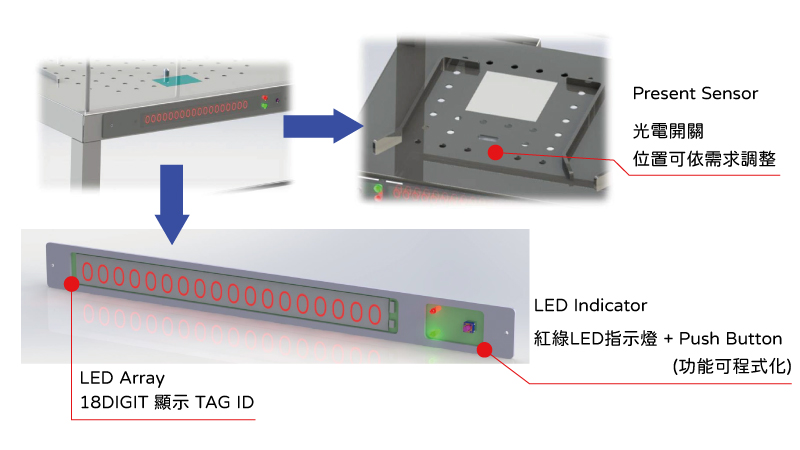

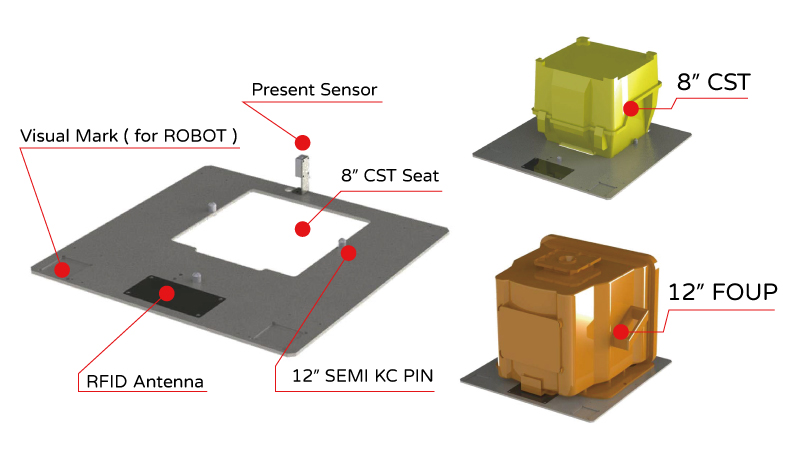

LED Array / LED Indicator / Present Sensor

LED Array / LED Indicator / Present Sensor

Storage Module Example

Storage Module Example

upper management software - eRack Management Server

Upper management software - eRack Management Server

  • Multiple management in series eRack (Add/Modify/Delete)
  • Communication exchange information with MES (SECS/GEM)
  • Provide inquiry of cargo location,History
  • Count the number of in and out of each slot

upper management software

Upper management software - Traffic System Controller

  • Multiple management in series eRack (Add/Modify/Delete)
  • Communication exchange information with MES/MCS (SECS/GEM)
  • Provide inquiry of cargo location,History
  • Count the number of in and out of each slot
  • MR Dispatch/ Traffic control
